Vintage silver aluminum 1970 Avion C11 truck camper on a blue 2015 Ram 3500 truck parked on CAT scale pad with fall color forest hill in the background.

After “is that an Airstream?” and “What year was that made?” the most common question we get about our 1970 Avion C11 truck camper is “How much does that weight?” It’s an understandable question. Weight in campers is a critical variable. Heavy campers need bigger trucks, consume more gas, and cause more problems on trails. Camper manufacturers list their campers with dry weight and estimated wet weight.

But what about campers with after-market modifications? We gutted our Avion and have been rebuilding it from subfloor to roof. What it weighed in 1970 has very little to do with what it weighs today. Fortunately, there are scales designed for vehicles our size and much larger. While there are some creative solutions that might save a bit of money, we prefer the CAT scales. Most truck stops across the US have a set of CAT scales that you can drive on and get an official weight of your front and back axels as well as trailer weight. These were installed for the trucking industry but anyone can pay to use them. Throughout our build, we have been weighing our camper to keep a gauge on how the weight has changed. And its shift over the years has been expressive of the progress we have made in between each weigh-in.

A note about camper weight: There are a lot of variables that can change the relative weight of our camper. While we are attempting to measure the difference in weight caused by our modifications, the amount of gas in the truck tank and random items in the truck and camper can change the weight. We do our best to remain consistent across weigh-ins by cleaning out the camper and truck. As the photographer, I am not in the truck when it is being weighed. As the driver, Chris is. Up until 2021, we attempted to reproduce the gas tank fill amount of the original camper weight (about 3/4 full). But in 2021, we switch to filling the tank completely for a more replicable weight.

Spring 2017 Camper Weigh-In (2837 lbs)

No sooner did we acquire our Avion camper than we weighed it. On our drive back from the previous owner, a new camper perilously perched in our truck, we stopped by a truck scale and registered our first weight. This begins our trend of intermittently weighing the camper as we modify it. But it is different from future weigh-ins because the camper weight includes the bedding, clothing, and ancillary gear that came with the camper when we picked it up from the previous owner. In future weigh-ins, we will unload anything that isn’t part of the camper itself. But at this time, we barely managed to record a weight before unloading the camper and getting to work. Regardless, this sets an upper weight limit that we hope not to exceed in the future.

Truck w/ Camper (lbs)Truck w/o Camper (lbs)Camper (lbs)
Steer Axel41804,046*134
Drive Axel56202,917*2703
Gross Weight98006,963*2837
5/28/2017 Cat Scale Weight with Camper
Weighing a 1970 Avion C11 truck camper at the truck stop CAT scales.
High on our list of things to do was to get an actual sense of the weight of the camper. Records were one thing, we wanted the actual weight.

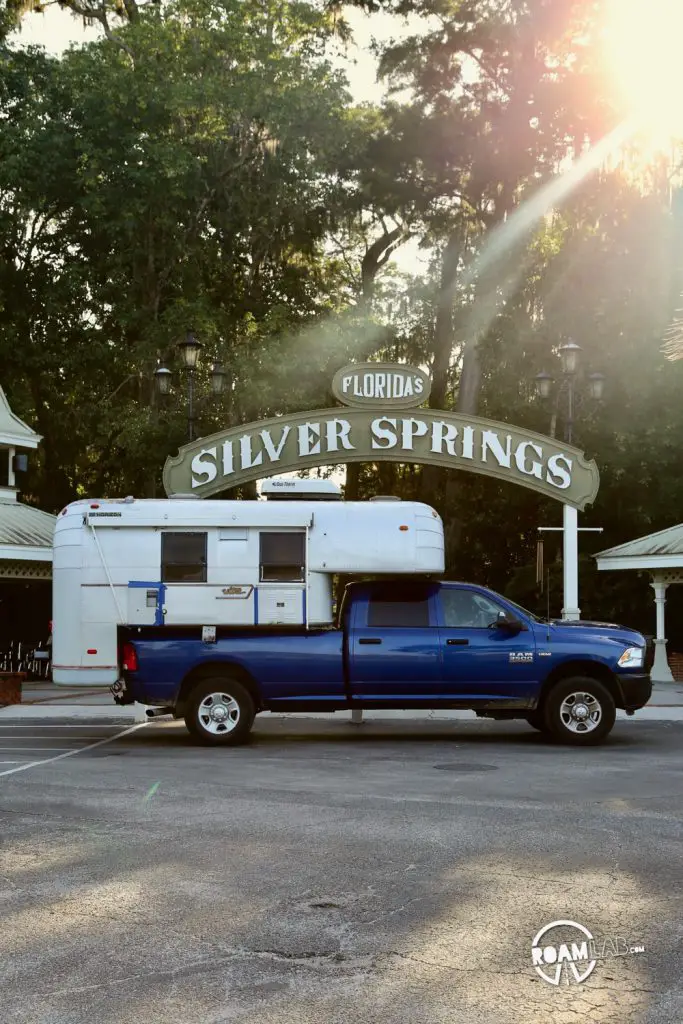

Sun shining down on a 1970 Avion C11 truck camper parked outside the entry to Silver Springs State Park, Florida.
We had planned to take a relaxed route back and enjoy a few sites while in Florida. We only managed to see Silver Springs before we fully appreciated the challenges ahead of us and decided to prioritize getting the camper to a place where we could fix it.

Winter 2017 Weigh-In (940 lbs)

By the end of 2017, we have gutted the camper interior and replaced the wings, sidewalls, and subfloor. It’s a pity we couldn’t capture the gutted weight before replacing the wings and subfloor, but we couldn’t safely drive the camper to the weigh station. Unfortunately, this is the one time that I forget to take a picture of the camper. This could also mean that I may have been in the truck during the weigh-in, potentially adding over 100 lbs to the total weight. All the same, this weigh-in represents the lightest the camper has ever and will ever be on the road. Heavy appliances, batteries, water tanks, cabinetry, and even the interior walls are all removed. From here on, it will be a meticulous build attempting to balance weight and utility as we modernize this vintage camper.

Truck w/ Camper (lbs)Truck w/o Camper (lbs)Camper (lbs)
Steer Axel42004,046*154
Drive Axel37402,917*823
Gross Weight79406,963*977
12/13/2017 CAT Scale weight camper.
A Cotton Candy Sunrise, Overlanding On Movie Road, And Campfire Cooking In The Alabama Hills - Lone Pine, California
Our Avion truck camper’s first sunrise on the Sierras
1970 Avion C11 truck camper parked by the ocean at sunrise.
Sunrise on a roadside pullout.

Renovations Since the Last Weigh-In

Stripping The Avion Ultra Truck Camper
Gutting the Avion
Wings distinguish a camper from most any other kind and when the time comes to replace them, it is a BIG DEAL.
Truck Camper Ring Replacement
Ready to install the new floor!
Subfloor Replacement

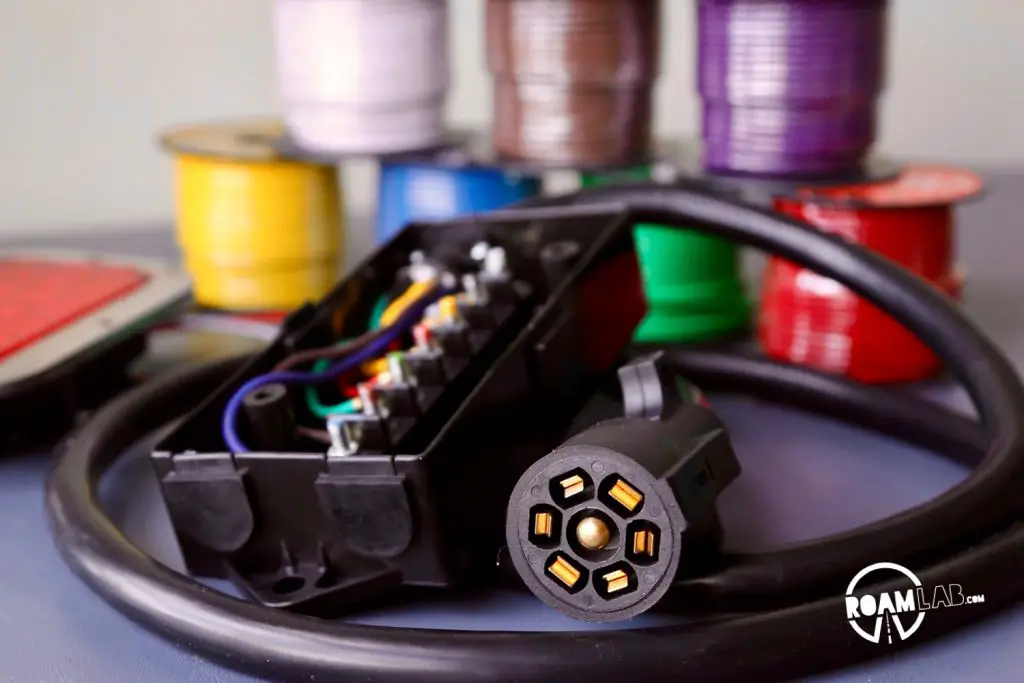

RV Trailer Lights: Rewiring Brake, Clearance, and License Plate Lights
Rewiring Trailer Lights

Fall 2018 Weigh-In (1080 lbs)

One year into our build and the Fall 2018 weigh-in marks significant structural changes in the camper. At this point, every remaining piece of wood has been replaced with slightly lighter weight Coosa but we have also extended the cabover, adding 18-inches to the length of the camper. This is effectively the new frame from which we will be building in the future. This also marks the first time that we weigh the truck after removing the camper for a better point of comparison.

Truck w/ Camper (lbs)Truck w/o Camper (lbs)Camper (lbs)
Steer Axel42804180100
Drive Axel38402860980
Gross Weight812070401080
11/16/2018 CAT Scale weight

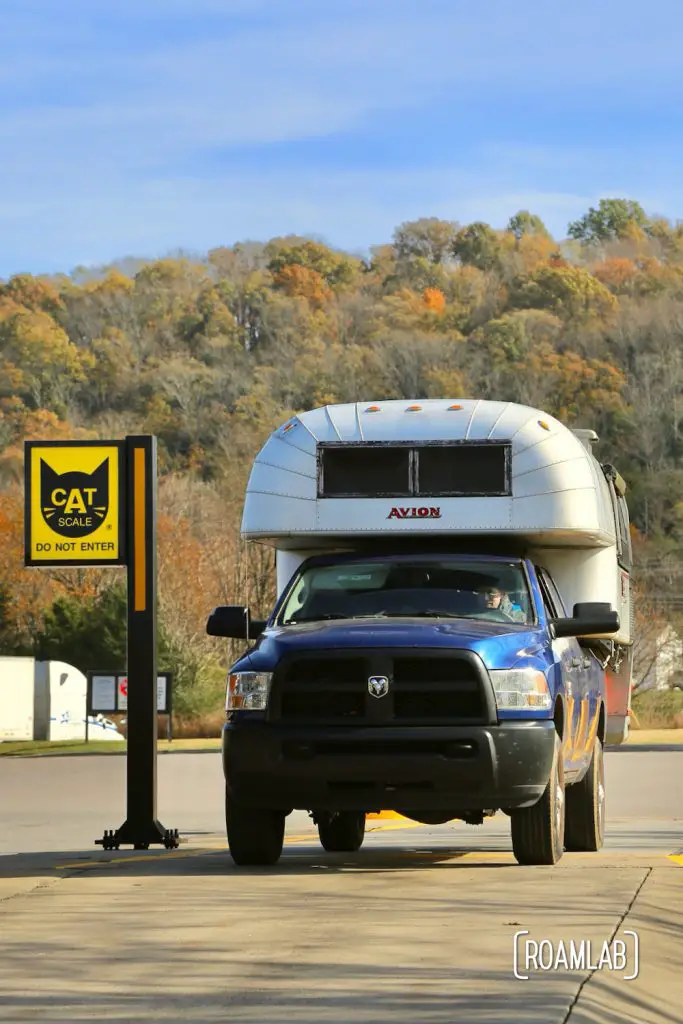

Silver 1970 Avion C11 truck camper sitting on a blue 2015 Ram 3500 with yellow CAT Scales sign to the left and colorful fall hillside in background.
Fall 2018 Weigh-In

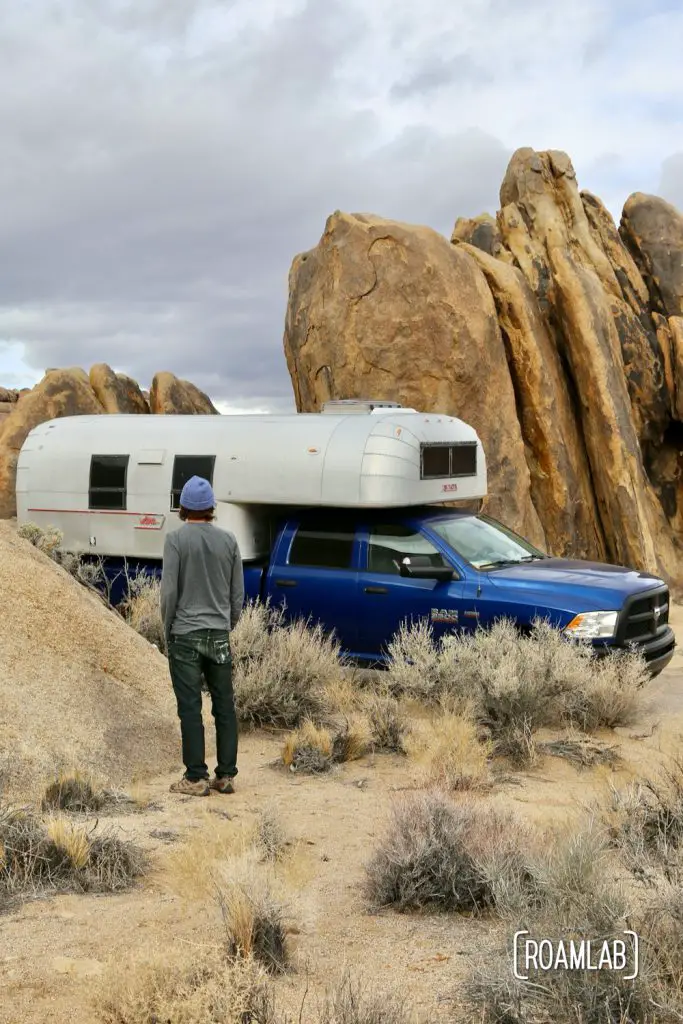

1970 Avion C11 truck camper overlanding in the Alabama Hills of California's Eastern Sierras.
1970 Avion C11 truck camper overlanding in the Alabama Hills of California’s Eastern Sierras.

Renovations Since the Last Weigh-In

  • Extend the camper cabover by 18″ to convert the bed from a east-west full-sized bed to a north-south queen sized bed.
  • Replace the rotten wooden bulwark with a Coosa reproduction.
Replacing the Bulwark

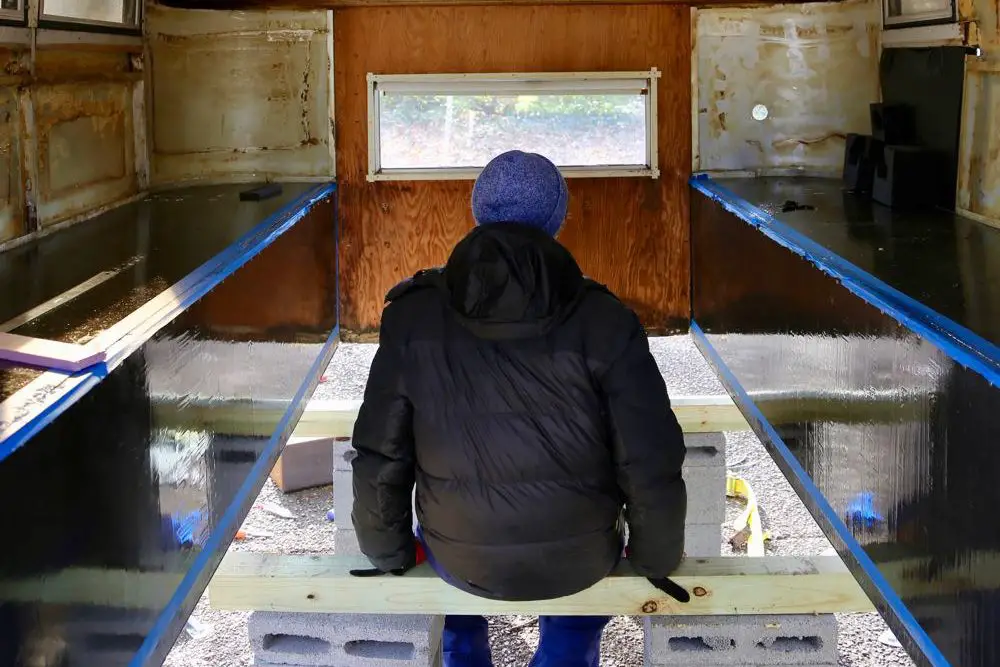

Rolling out air bubbles from fiberglass cloth to re-enforcing the truck camper floor.
Reinforcing Subfloor
Extending Truck Camper Cabover

Fall 2021 Weigh-In (1360 lbs)

By 2021, we have pretty much completed any exterior work on the camper and are in the early stages of the interior build. Between patches and upgrades, we have gained 280 lbs. The increase is a bit of a shock until we tally up all the work we have done since the last weight in.

Truck w/ Camper (lbs)Truck w/o Camper (lbs)Camper (lbs)
Steer Axel4500444060
Drive Axel426029601300
Gross Weight876074001360
2021 weight chart

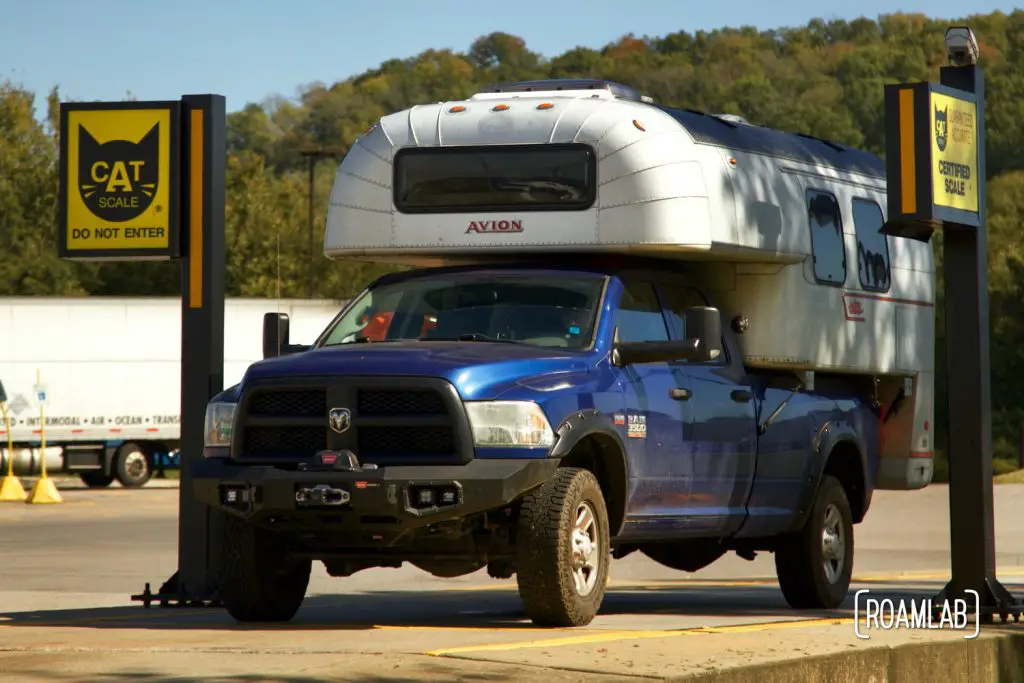

Vintage silver aluminum 1970 Avion C11 truck camper on a blue 2015 Ram 3500 truck parked on CAT scale pad with fall color forest hill in the background.
Weighing in the truck and camper in fall 2021.

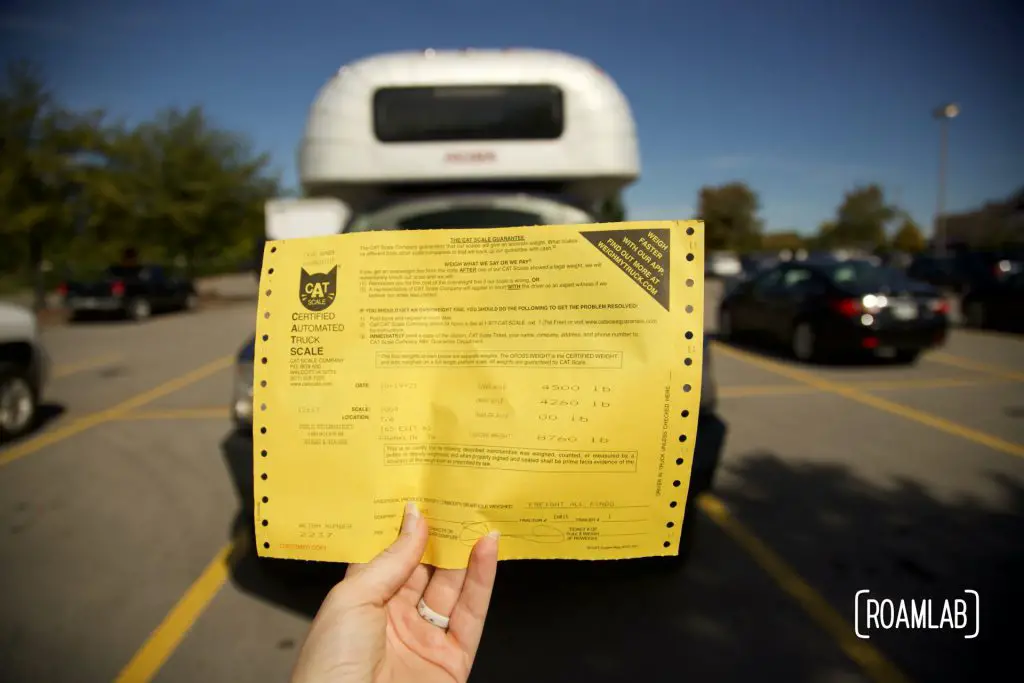

Hand holding up yellow paper with CAT Scale print out results.
2021 CAT Scale results

Renovations Since the Last Weigh-In

Test fitting solar panels on a 1970 Avion C11 truck camper roof.
Mounting Flexible Solar Panels
We make a custom battery box for our DIY lithium batteries featuring buck riveted aluminum, high impact rubber, and a plexiglass viewing window.
DIY LiFePO4 Battery
Keep the cold out and cut back on condensation with a DIY demonstration: applying closed cell spray foam in an aluminum 1970 Avion C11 truck camper.
Spray Foam Insulation

2021 Truck Weight

In a diversion from past renovations, however, we also see a change in the weight of the truck itself. Some of this is because we are switching from weighing the truck with a tank 3/4 full to completely full. But that roughly 24 lbs doesn’t account for the 360 lbs weight gain. But there is plenty of work that we completed that does explain the change:

2018 Truck (lbs)2021 Truck (lbs)Difference (lbs)
Steer Axel4180444060
Drive Axel286029601300
Gross Weight70407400360
2021 weight chart

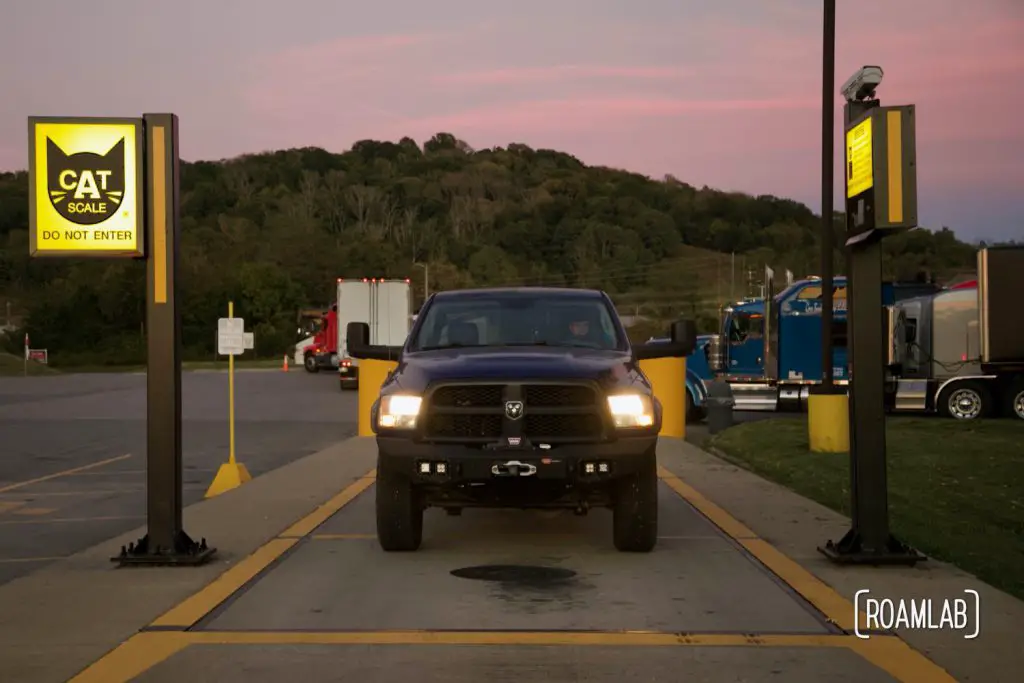

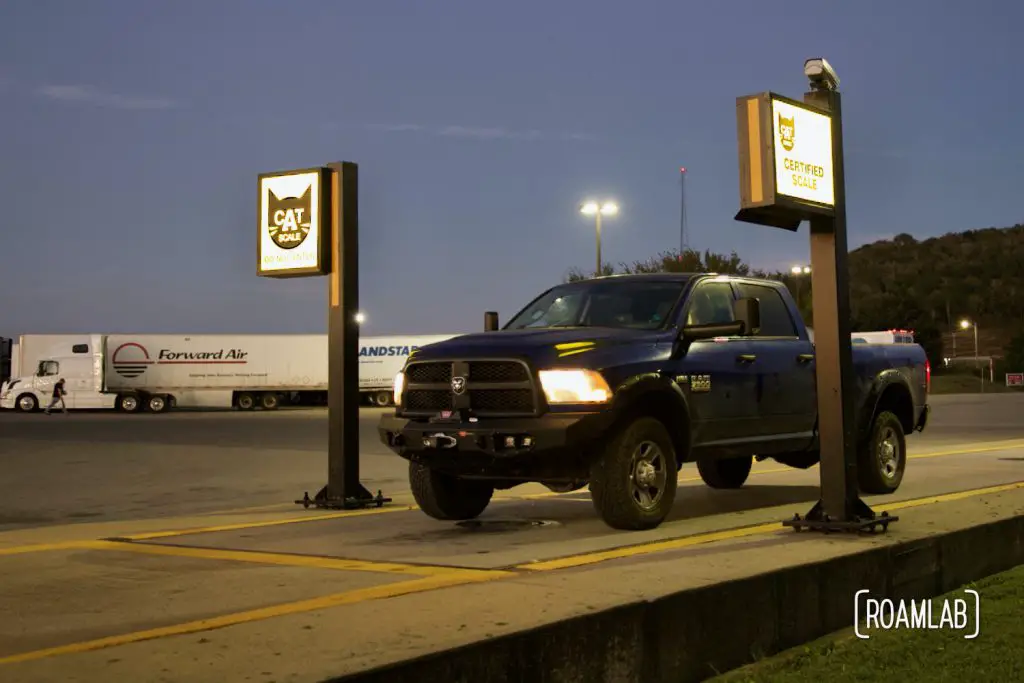

Blue 2015 Ram 3500 blue truck on a CAT Scale with sunset in the background.
Fall 2021 truck weigh-in without the camper.
Blue truck camper on a CAT Scale.
Fall 2021 truck weigh-in without the camper.

Renovations Since the Last Weigh-In

We complete our latest 2015 Ram 3500 mod by installing a Warn Zeon 12-S Winch on our new Ascent Front Bumper. Our latest adventure as auto mechanics.
Warn Zeon Winch Install
After removing our 2015 Ram 3500's grille and front bumper, it's time to finally install our new Warn Ascent Front Bumper for our overland adventures.
Warn Ascent Front Bumper Install
We upgrade our truck camper security with this DIY install of the HappiJac Frame Mount Camper Tiedown System in our 2015 Ram 3500 Tradesman truck.
Happijac Tie-Down System

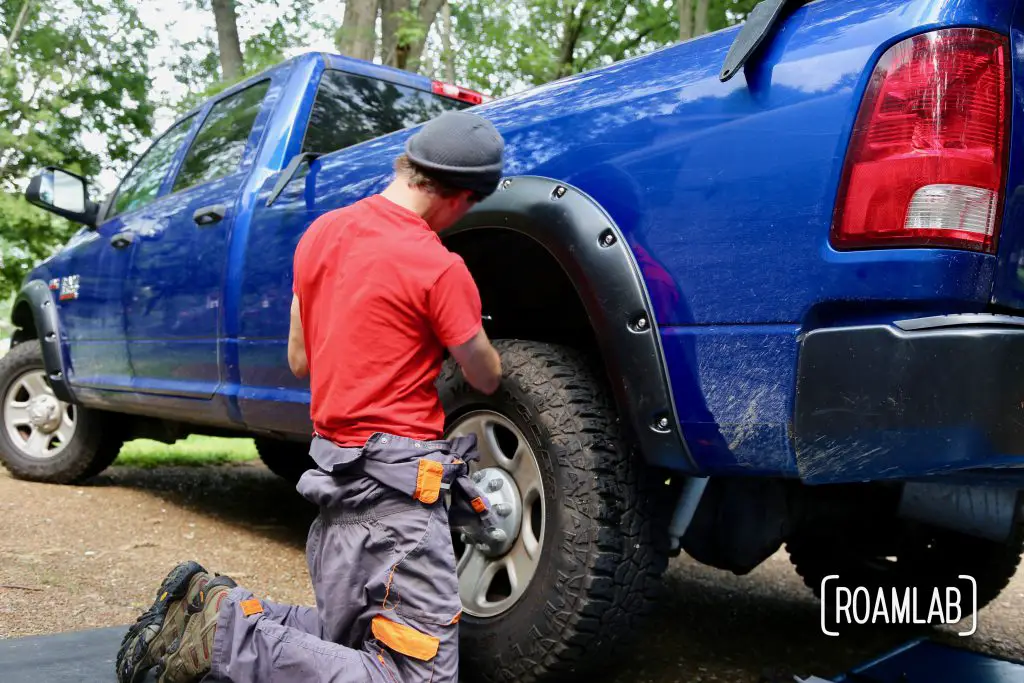

Upgrading our overland rig with "do it yourself" installation of Bushwacker Fender Flares on a 2015 Ram 3500.
Bushwacker Fender Flares

Spring 2022 Weigh-In

Almost five months after our last weigh-in and we already have a lot to consider. Unlike past weigh-ins, however, most of the changes are on our truck rather than the camper. We are most excited by our upgrade to a Bowen Customs truck bed, with 40 square feet of additional storage. After seven years on factory wheels, we downsize to 17-inch Method 305s and increase our tires to 35-inch All-Terrain T/A KO2s. This combination will give us much more traction on the trail while still maintaining excellent highway performance.

On the camper front, we are in the process of several new projects but nothing is complete. The only thing that should affect our camper weight is the aluminum sheet we are installing as inner walls to the camper. As noted, however, we are only partially done with this.

Truck w/ Camper (lbs)Truck w/o Camper (lbs)Camper (lbs)
Steer Axel4500
Drive Axel4520
Gross Weight9020
Spring 2022 weight chart
1970 Avion C11 truck camper parked on CAT scales.
Spring 2022 weigh-in
Man arranging equipment in the lower passenger side storage box of a Bowen Customs aluminum truck bed.
Arranging equipment in the lower passenger side storage box.

Renovations Since the Last Weigh-In

  • Upgrading to 17-inch Method 305 wheels & 35-inch All-Terrain T/A KO2 tires
  • Install Bowen Customs truck bed
  • Partial mountng of aluminum interior walls.
Image of a truck camper cut off at the bottom with a schematic for a truck bed
Designing a custom truck bed.
Wide view of partially constructed black truck bed.
Installing a custom truck bed
Man arranging equipment in the lower passenger side storage box of a Bowen Customs aluminum truck bed.
Arranging equipment in the lower passenger side storage box.

A Work In Progress

The passage of time may. be a bit of a shock. There are a lot of camper builds out there that are turned around in a matter of months. Of course, we are not the kinds to sacrifice quality in the interest of speed. And given our interest in experimentation and research, building decisions take time at the Roam Lab. Not to mention, we have been traveling in the truck camper throughout the years. So, yes, it’s been years, and will take more before we might come close to considering this build finished. In the meantime, we will continue to update this page new additions warrant weigh-ins.

Join the conversation: Do you have any questions about RV weight? Let us know in the comments!


* Based on 6,963 lbs weight reported by the factory for a 2015 Ram 3500 crew cab long box, 4X4, SRW, 6.4L V8 HEMI 3.73 axle ration truck.
